"Highly productive,
superior quality, extremely reliable, unparalleled performance … the
needs of today's print professional … the ability to satisfy these
needs - the Canon iR110."

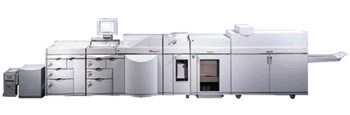

The
Canon iR110 Network Production System is the complete high volume digital
printing solution centered around a Web browser-based interface, a new
image-processing architecture and an innovative 110 page per minute
digital printing engine with extensive finishing capabilities. Designed to
satisfy the continually challenging demands of the environment you operate
in, the iR110 will continue to impress day after day.
In an era when quality is paramount, the iR110 will
exceed all expectations, combining a number of advanced quality features
to produce continuously high quality output every time.
High Image
Quality
The printing process, which
creates the images from the digital data, is differentiated in the Canon
iR110 by a number of technologies. These include:
a) An advanced LED writer system with significant
technological advances in dot definition, uniformity, and reliability.
b) Gray Resolution Enhancement Technology, or GRET, to
produce text and lines with excellent edge definition and smoothness.
c) Small Particle Developer toning subsystem, to produce
smooth solids, crisp text and line art, and low levels of print
background.
d) A highly advanced process control system to give
consistent print quality print to print, run to run, and machine to
machine.
These technological
advancements represent a significant departure from conventional imaging
systems. Together, they create consistently high quality printed pages.
High
Reliability and Ease of Use
Reliable paper handling is
the cornerstone of the Canon iR110 Network Production System. This is due
to a variety of innovative design features, including:
-
User-friendly paper
feed technology, which accommodates a wide variety of paper
types and sizes
-
Efficient, highly
reliable Race-Track (trayless) duplexing with an
in-track paper decurler
-
A unique, user-friendly
paper path access all the way from the paper supplies through
the fuser to the finishing devices
-
Intuitive Web
browser based interface for easy control and management of the
system
These technologies combine to
provide an unsurpassed ability to reliably handle the wide variety of
paper stocks necessary to produce high-value documents in a production
environment.
User friendly technology
The Canon iR110 System paper supplies come equipped with Vacuum Corrugated
Feed (VCF) paper feed technology. All of the paper supplies (up to six) in
the Canon iR110 System use VCF technology and benefit from the following
reliability enhancements:
-
No adjustment is required
to feed any and all recommended weights of paper
-
Parts that would wear,
degrade performance, and require replacement are eliminated
-
Misfeeds and multifeed
are significantly reduced while the range of paper types and stocks
that can be run reliably is increased
The overall result of VCF
technology is more up time and more system productivity.
Race-Track (Trayless)
duplexing keeps two-sided imaging travelling smoothly.
Race-track duplexing is a significant part of the reliability of the Canon
iR110 System. Instead of storing single sided copies in a tray to feed for
the duplex image, race-track duplexing keeps the paper continually moving,
eliminating the chance of duplex tray misfeeds and waste after a jam. This
also contributes to the system’s ability to deliver first-in, first-out
sets. The race track paper path and its sophisticated software interface
can continually move and monitor a maximum of six single sided sheets when
printing the duplex sides of images. An integrated decurler helps maintain
paper flatness for reliable transport after its first pass through the
fuser.
User-friendly paper
path access helps keep productivity rolling.
The Canon iR110 System features a short, straight paper path. This path,
in combination with reliable paper feed, active registration and
race-track duplex path, significantly reduces the number of paper jams
compared to competitive products. Any stoppages are incredibly easy to
clear, due to the straight paper path and specifically designed software
and hardware paper clearance features.
Web-Browser-Based
Operator Control Interface simplifies Document Printing, System
Control and Job Management. The Marking Engine console features a
touch screen monitor for easy control. The main advantages of web-based
interface are that all updates to the interface are done at one central
location rather than having to update all client workstations, while the
interface has the same look and feel no matter what client operating
system is used.
Productivity
and flexible paper handling
Increases in productivity are
offered through a number of mechanisms in the iR110, these include:
-
Newly designed
paper supplies, which are easy to load and reload for long run
throughput
-
Active registration
technology, for registration of copied images
-
Modularity
of the iR110 allows the solution to be tailored to your needs to
increase productivity
-
Newly designed
paper supply offers larger capacity and easier loading than
ever before
The Canon iR110 System
provides a standard paper capacity of 4,000 sheets in three drawers. The
bottom two drawers hold a total of 3,000 75g/m2 sheets of paper up to A3.
The top drawer holds 1,000 sheets of A4 paper. A second paper supply
module can be added to bring the total capacity to 8,000 sheets.
Several new and
tried-and-true features have been designed into these supplies to make
them easier and more productive to use:
-
Easy glide drawer tracks
with ergonomically designed drawer pulls
-
Unrestricted access to
drawer when loading paper is provided by a feed head that remains
inside the body of the mainframe
-
Easy paper size
adjustment, guides have discrete notched stops for common sizes
-
Specialty paper loading
orientation is simple and diagrammed by a label
-
Bright LED paper level
indicators show supply status at a glance, even from across the room
-
Unlock buttons on drawers
provide convenient access to paper supplies
-
Continuous run capability
allows reloading of paper drawers not in use; on-drawer status
indicators help prevent accidental interruptions
The ingenious, modular
design of the iR110 system allows it to be configured to meet all high
volume needs, whether for Central Reprographics Departments, or
Commercial Print environments. An additional paper supply module,
stacker and Booklet maker can be added to any of the std
configurations, to increase productivity without compromising on speed
(110 images per minute).
 |
|
|
|
110 prints per minute
Superior
image quality
Advanced
Finishing Capabilities
Highly
reliable
Flexible
Paper handling
Modular
tailored solution
|
